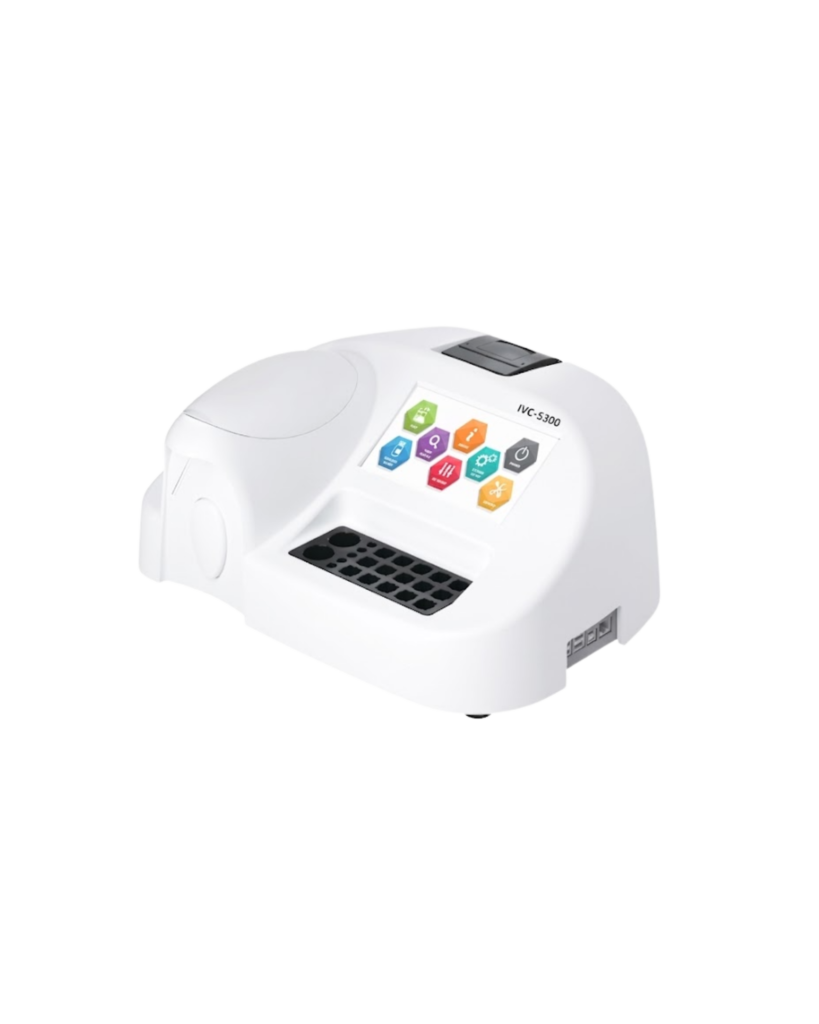

IVC-S300
Semi-Auto Chemistry Analyzer
Innovation Meets Reliability
Compact, user-friendly, and accurate semi-automatic analyzer designed for low- to mid-volume clinical laboratories.
Efficient
● Compact footprint for space-saving installation
● High-speed photometric measurement system
● Simple keypad-based operation for quick test execution
Reliable
● Halogen lamp and high-precision photometer ensure reliable absorbance readings
● Dual modes (flow cell and cuvette) for flexible testing
● Built-in self-diagnostics to monitor performance
Accurate
● 10 wavelengths (340–800 nm) with narrow bandwidth for exact results
● Temperature-controlled flow cell (37°C ± 0.1°C) ensures stability
● Automatic calibration and blank correction improve precision
Friendly
● Large LCD display and soft keypad for intuitive operation
● On-screen prompts and programmable test parameters
● Compact, easy-to-clean design with low maintenance requirements
Every Test Made Easy
Combining user-centric controls with consistent performance, IVC-S300 helps labs achieve dependable biochemistry results at an affordable cost.
Intelligent Sampling
● Supports both flow cell and cuvette modes
● Micro-volume sampling for minimal reagent waste
● Reagent volume: 0.5–2.0 ml per test
Reagent & Cuvette System
● Open system compatible with various reagents
● Durable and easily replaceable flow cell
● Can store up to 200 test programs
Accurate Temperature Control
● Built-in temperature incubation with real-time monitoring
● Maintains stable reaction conditions throughout testing
Smart Maintenance Design
● Self-diagnostic checks for lamp, filter wheel, and photometer
● Error logs and alerts displayed for easy troubleshooting
● Easy access to all parts for quick service
Advanced Operation System
User-friendly Software Interface
● Programmable test setup with memory recall
● Displays absorbance curve and reaction data
● Results can be printed or saved via RS-232 port
Real-time Monitoring
● Monitor real-time temperature and absorbance values
● Status indicators guide users through each step
IVH-31 Technical Specifications
Wavelengths
340, 405, 450, 492, 510, 546, 578, 600, 620, 800 nm
Temperature Control
37°C ± 0.1°C
Light Source
Halogen lamp
Flow Cell
32 µl, quartz, with cuvette mode option
Measurement
Photometric (single/dual wavelength)
Display
LCD screen
Memory
Up to 200 programmable tests
Interface
RS-232 serial port
Power Supply
AC 220V ±10%, 50/60Hz, 120W
Dimensions
Compact bench-top design
