IVC-105 – IVOMED

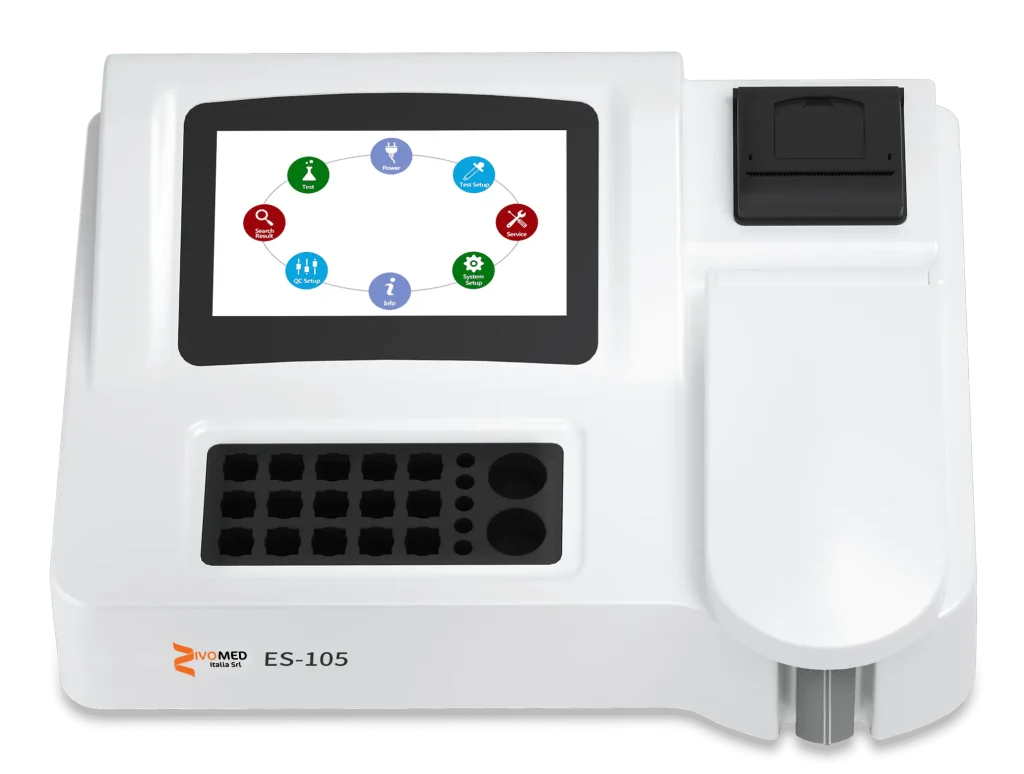

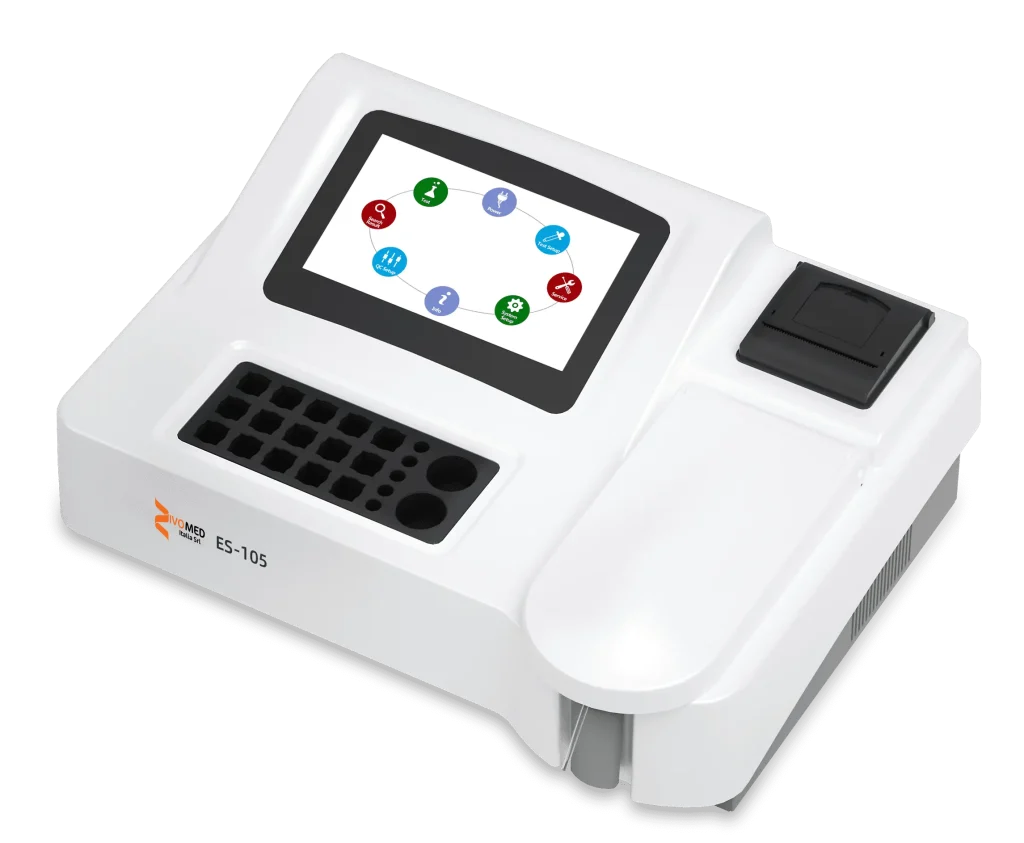

ES-105

Semi-Auto Chemistry Analyzer

Perfect Balance of
Efficiency and Flexibility

Long warranty | period brand
accessories | large capacity storage

Convenient Operation Through Touch Screen

7'' color touch screen, friendly user interface, covenient operation.

Multifunctional
Incubator

Multifunctional incubator
specially designed for chemistry
and coagulation tests, different
holes can be used to put sampe
tubes, chemistry cuvettes,
coagulation cuvettes, accurate
temperature control, more
efficient sample incubation.

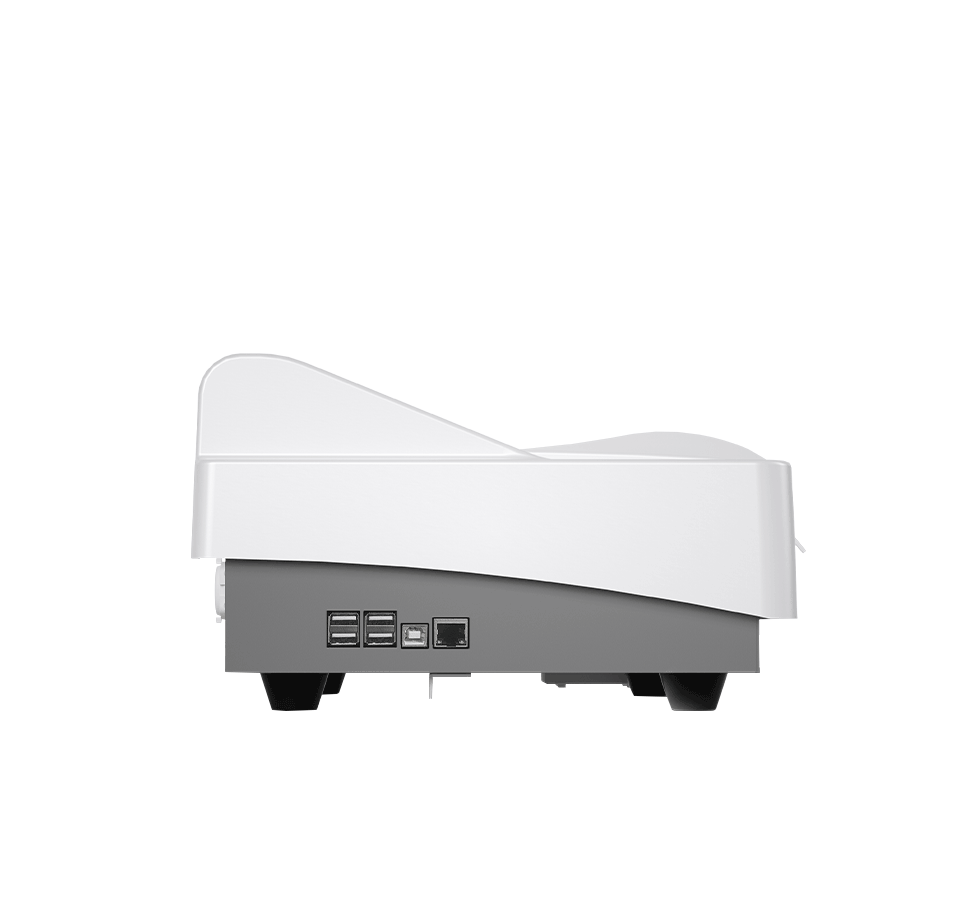

6 Intefaces, More Suitable

5 USB Interfaces +Ethernet Port. Mouse, keyboard and printer can be connected freely, easy transmission of LIS data.

Powerful Inner Core,
Huge Storage

Storage of 200000 results,
results are stored without pressure.

Intelligent & Humanized
Software

More convenient to edit test items freely, clear presentation of real-time curve,calibration, quality control and sample results.

ES-105 Technical specifications

Test method

1 point end, 2 point end(Sample blank), Kinetics, Fixed-time, Coagulation(optional)

Optics

7 standard filters (340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm). 2 more for optional

Lamp house

Long-life tungsten halogen lamp(6V/10W), auto-sleep function

Display

7.0"TFT LCD with touch screen, 800*480 pixels

Printer

Build-in thermal printer, 57mm printer paper

Reaction temperature

Peltier pad incubation system, reaction temperature (37℃ ± 0.1℃)

Flow cell capacity & optical path

32ul, 10mm

Resolution

0.0001 Abs

Photometric range

0.0000-4.0000 Abs

CPU

ARM Cortex-A8, 800MHz

Memory(Storage)

4GB; Over 300 programs, 200000 results can be stored

Operational environment

Temperature 10℃~30℃; Humidity 30%~80%

Power requirement

Wide power supply AC 100-240V, 50/60 Hz

Widely used in the field of in vitro diagnosis (IVD).

Widely used in the field of in vitro diagnosis (IVD). With supporting biochemical reagents, it can quickly detect more than 80 biochemical immune reagent items such as liver function, kidney function, myocardium, blood glucose, blood lipid and specific protein.
